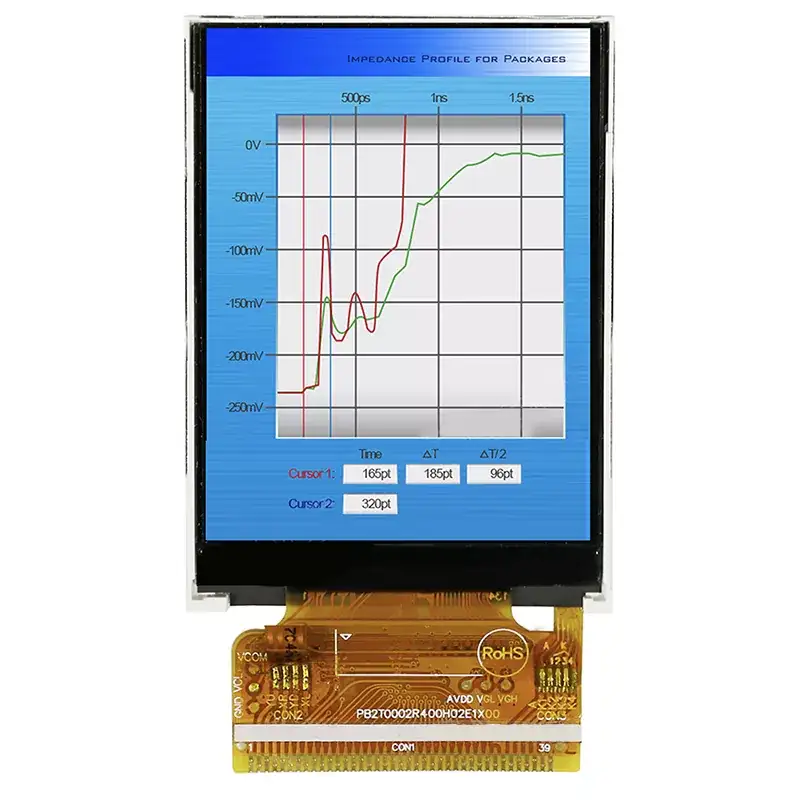

Moduł 2,4 cala 240x320 TFT

TFT LCD is a type of liquid crystal display that utilizes thin-film transistor technology to enhance image quality, and it has numerous applications in everyday life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 2.4 inch 240x320 TFT Module different from other manufacturers? Initially, it offers a typical brightness of 200 cd/m² and a contrast ratio of 250:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 4-die white LED with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports an 8-bit MCU parallel interface (35-pin connector). In addition, it passes rigorous environmental testing, including thermal shock (-30°C ↔ +80°C cycles), humidity storage (60°C/90% RH), and mechanical vibration, ensuring it can operate seamlessly across an extended temperature range (-20°C to +70°C).

This 2.4 inch TFT display by Victronix is commonly used in industrial HMIs, medical devices, portable instruments, test equipment, and IoT controllers that require sunlight readability and a wide temperature range.

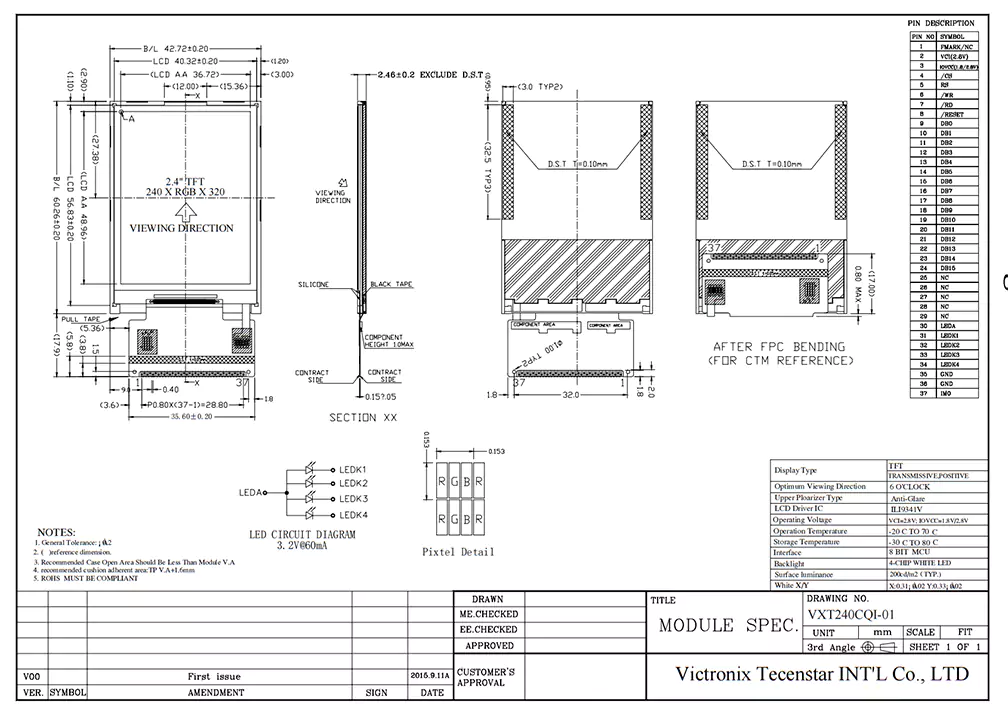

Specification of MCU Interface 2.4 TFT SPI 240x320 LCD Module

General Specification
